Microscopes
Stereo Microscope
Optical System
- Type: Greenough optical system for 3D viewing of samples.
- Design: Plug-and-play design for easy setup.
Zoom & Magnification
- Zoom Ratio: 4:1 to 5:1.
- Magnification: Minimum 8x to 35x with a 1x objective and 10x eyepiece.
- Maximum Resolution: 170 lp/mm.
- Working Distance: 100 mm.
Eyepiece
- Type: 10x with Field of View (FOV) 23.
- Viewing Angle: Adjustable from 45° to 60°.
- Interpupillary Adjustment: 50 mm to 75 mm or more.
Focus Mechanism
- Feature: Tool-free tension adjustment for ease of use.
Illumination
- Built-in Lighting:
- Reflected Light: 6500 K, constant-color temperature LED, 25,000-hour lifespan.
- Transmitted Light: 4500 K, constant-color temperature LED, 25,000-hour lifespan.
- Control: Variable light intensity control for both reflected and transmitted light.
- Modes: Reflected and transmitted light can be used separately or simultaneously.
- Reflected Illumination: Inbuilt 3-directional (fill, top, and oblique) illumination.
- Energy Efficiency: Auto shut-off after 120 minutes of inactivity.
Digital Camera
- Type: Inbuilt high-definition 5 MP (2592 x 1944) or higher CMOS camera.
- Light Distribution: 50% visual and 50% camera.
- Interface: HDMI, USB 2.0.
Modes
- HD Mode: Live image streaming at 1920 x 1080p to an HD display.
- Image Capture: Storage directly to an SD card.
Features
- Basic image capture.
- Simple measuring and annotation applications.
Accessories
- Storage: SD memory card for image storage.
- System Requirements: Branded PC with the following specifications:
- Processor: Core i7 or better (13th Gen or later).
- RAM: 16 GB or more.
- Storage: 1 TB SSD or more.
- Graphics: Dedicated graphic card.
- Display: 21-inch HD monitor or larger.
- Operating System: Windows 10 or newer.
SPIM-01
Availability:
In Stock
In Stock
Related Products
Related products
-
Microscopes
Binocular Microscope
- Viewing Head – Binocular, Inclined at 45° Rotatable; 55-75mm interpupillary distance.
- Eyepiece – WF 10x, WF 15x.
- Nosepiece – Quadruple Nosepiece.
- Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil).
- Stage – Double Layer Mechanical Stage with 70 x 27mm
X-Y travel range. - Focusing– Coaxial Knobs for Coarse and Fine focus.
- Condenser – Adjustable Two Lens Abbe Condenser N. A. 1.25
with Iris Diaphragm, filter holder and blue filter. - Illumination – LED Illumination with adjustable brightness.
- Accessories – Dust Cover and Cleaning Cloth.
- Packaging – Styrofoam.
BLB44DL -
Microscopes

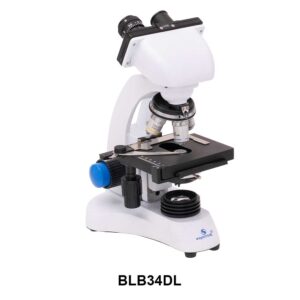

Binocular Microscope
- Viewing Head – Binocular, Inclined at 30°/45° Rotatable; 55-75mm interpupillary distance
- Eyepiece – WF 10x, WF 15x
- Nosepiece – Quadruple Nosepiece
- Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil)
- Stage – Double Layer Mechanical Stage with 70 x 27 mm X-Y travel range
- Focusing – Coaxial Knobs for Coarse and Fine focus
- Condenser – Adjustable Two Lens Abbe Condenser NA 1.25 with Iris Diaphragm, filter holder and blue filter
- Illumination – LED Illumination with adjustable brightness
- Accessories – Dust Cover and Cleaning Cloth
- Packaging – Styrofoam
BLB34DL -
Microscopes

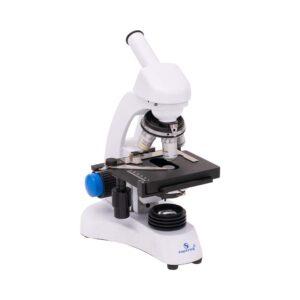

Monocular Microscope
- Viewing Head – Monocular, Inclined at 30°/45° Rotatable
- Eyepiece – WF 10x, WF 15x
- Nosepiece – Quadruple Nosepiece
- Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil)
- Stage – Double Layer Mechanical Stage with 70 x 27 mm X-Y travel range
- Focusing – Coaxial Knobs for Coarse and Fine focus
- Condenser – Adjustable Two Lens Abbe Condenser NA 1.25 with Iris Diaphragm, filter holder and blue filter
- Illumination – LED Illumination with adjustable brightness
- Accessories – Dust Cover and Cleaning Cloth
- Packaging – Styrofoam
BLM34DL -
Microscopes

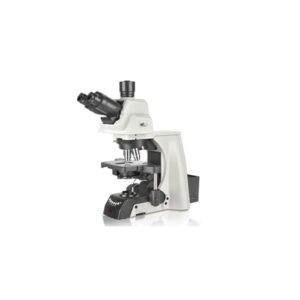

Advance Phase Contrast Microscope with Digital Camera
Advanced Phase Contrast Microscope with Digital Camera
Key Features and Specifications
- Optical System:
- Upright compound microscope with harmonically compensated optical system for superior clarity.
- Contrast Modes:
- Supports Bright Field, Dark Field, and Phase Contrast imaging.
- Illumination:
- Long-life LED transmitted light illumination with automatic intensity reproduction.
- Lifespan: ≥ 50,000 hours.
- Nosepiece:
- Motorized sextuple objective turret.
- Toggle mode for automatic switching between objectives.
- Revolving nosepiece with 3-5 positions.
- Condenser:
- Motorized condenser with automatic light intensity control for all contrast modes.
- Focusing Mechanism:
- Three-step coarse, medium, and fine focusing.
- Torque adjustment and adjustable focus stop.
- Observation Tube:
- Trinocular phototube with a 30° viewing angle.
- Interpupillary adjustment (55-75 mm) with a constant focus beam splitter (100/0/100%).
- Ergonomic Design:
- Adjustable ergo base plate with height adjustment (40-80 mm).
- Eyepieces:
- Wide-field paired 10x eyepieces with a field of view ≥ 20 mm.
- Diopter adjustment on both sides.
- Objectives:
- Plan achromatic objectives:
- 4x/5x (N.A. ≥ 0.12)
- 10x (N.A. ≥ 0.25)
- 20x (N.A. ≥ 0.40)
- 40x (N.A. ≥ 0.65)
- 100x oil immersion (N.A. ≥ 1.25)
- Compatible with Bright Field, Dark Field, and Phase Contrast imaging.
- Stage:
- Rectangular ceramic-coated stage with a travel range of 76 x 25 mm or better.
- Double slide holder for single-hand operation.
- Digital Camera:
- Sensor: CMOS 1/2.3” with ≥ 12 MP resolution.
- Speed: 4K live imaging at 60 fps.
- Interfaces: USB 3.1 Type-C, HDMI, and Wi-Fi via USB.
- Features: Standalone operation, direct USB capture, email capability, and 30 fps video recording.
- Software Features:
- Camera control for image acquisition.
- Exposure, gain, and gamma adjustments.
- Measurement tools for intensity, length, and area.
- Live image processing and parallax correction.
- Easy operation mode with user-customizable settings.
- Upgradability:
- Future upgrades for DIC, polarization, and fluorescence imaging.
- Desktop PC Configuration:
- Intel Core i5, 8 GB RAM, 1 TB HDD, 2 GB Graphics Card, Windows 10 or higher.
- 21” LED HD monitor or better.
SPIM-02 -
Microscopes

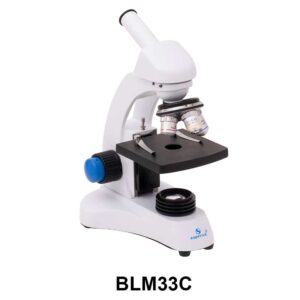

Monocular Microscope
