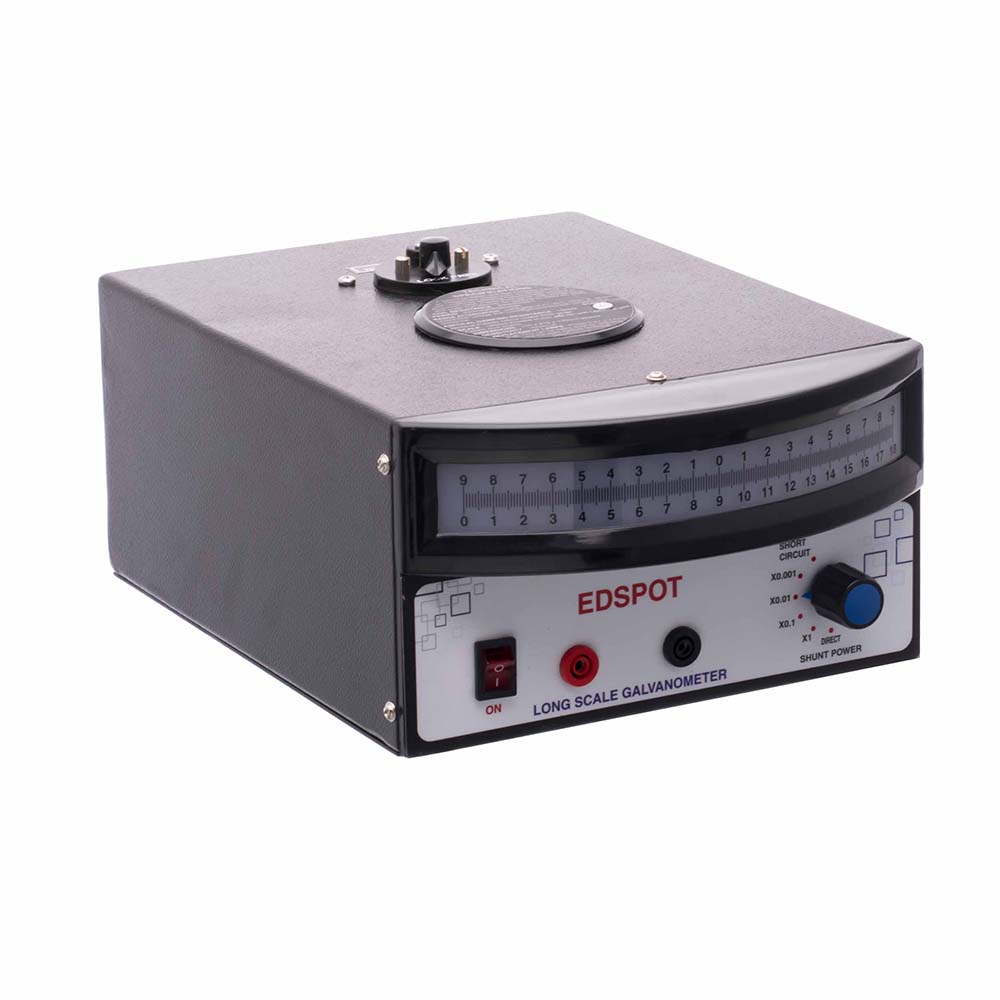

Spot Reflecting Galvanometer
Housed in metal body with built in lamp and scale.
Coil Res. : 100 μA.
Time Period : 2 Sec. Approx.
Sensitivity : 15 mm/ μA.
Scale Length : 180 mm.
Dimensions : 295 x 210 x 130 mm approx.
In Put : 220 VAC.
In Stock
In Stock
Related Products
Related products
-
Electrical Accessories
Power Supply, Continuously Variable, 25V
The power supply provides continuously variable AC and DC outputs. A meter is provided to indicate both AC and DC voltages. An internal fuse is provided at input and a resettable cut-out for output.
Mains input: 220 V (±10 %), 50 / 60 Hz.
Output Voltage: 0 to 25 V AC and wave rectified DC
Output Current (Max.): 10 A for AC, 8 A for DC
Voltage Selection: Voltage is controlled by a large rotating knob on front panel.
Display Meter: Analog meter for AC and DC voltages. Selector switch to select between AC and DC.
Circuit Protection: Mains input 3 A internal glass fuse link. Output is protected by a resettable cut-out.
Output Terminals: Colour coded 4 mm sockets.PH61015 -
Electrical Accessories
12V AC/DC Power Supply
Provides AC and DC voltages for low current applications. D.C. output is 0 to 12 volts variable and is electronically smoothed. AC out-put is fixed 12 volts. The unit is provided with continuous overload and short circuit protection.
- DC Output : 0 to 12 Volts, Variable.
- Max DC Current : 500 mA.
- AC Output : 12 Volts Fixed.
- Max AC Current : 500mA.
- Protection : Continuous overload and short circuit protection.
PH61011
