Power Supply, 2V

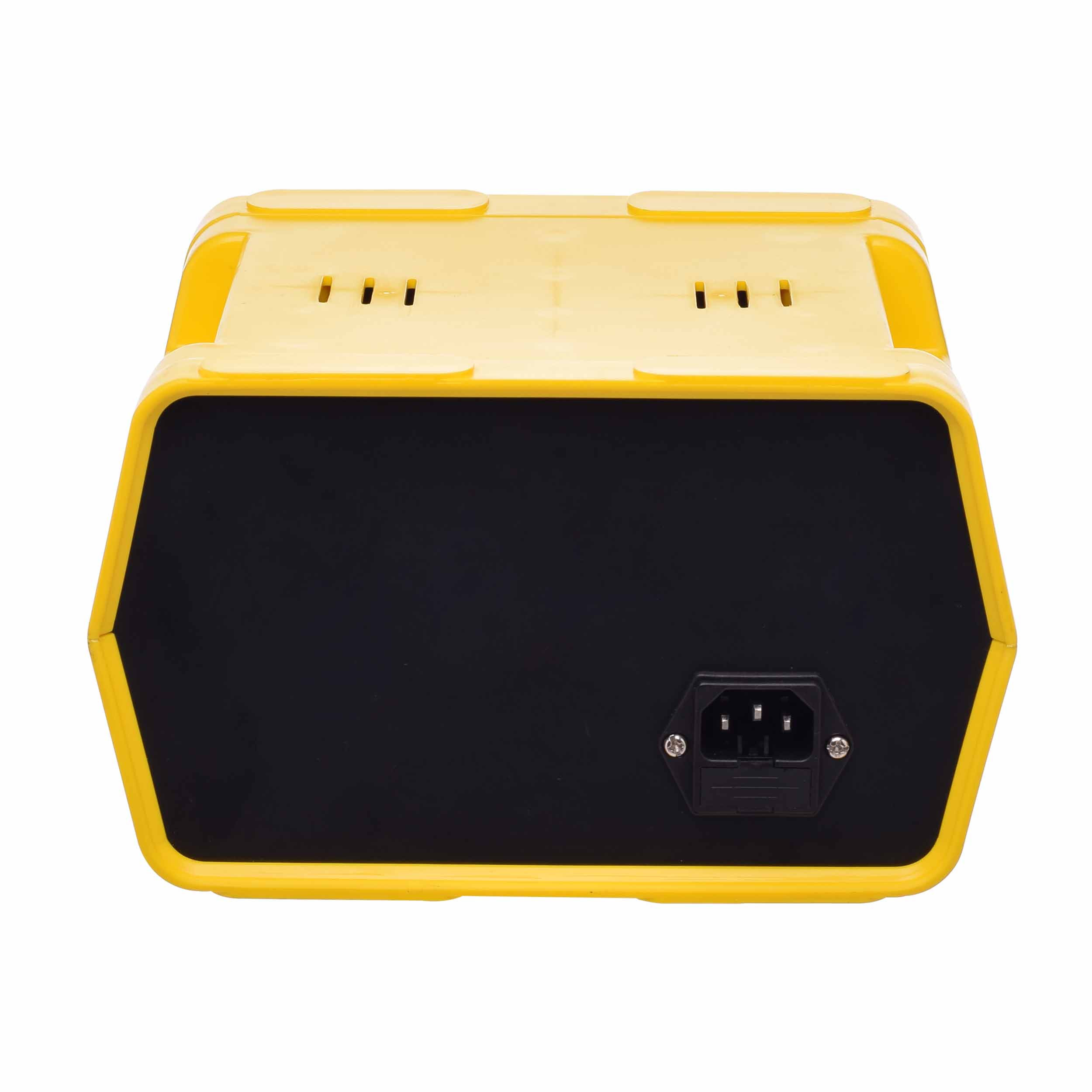

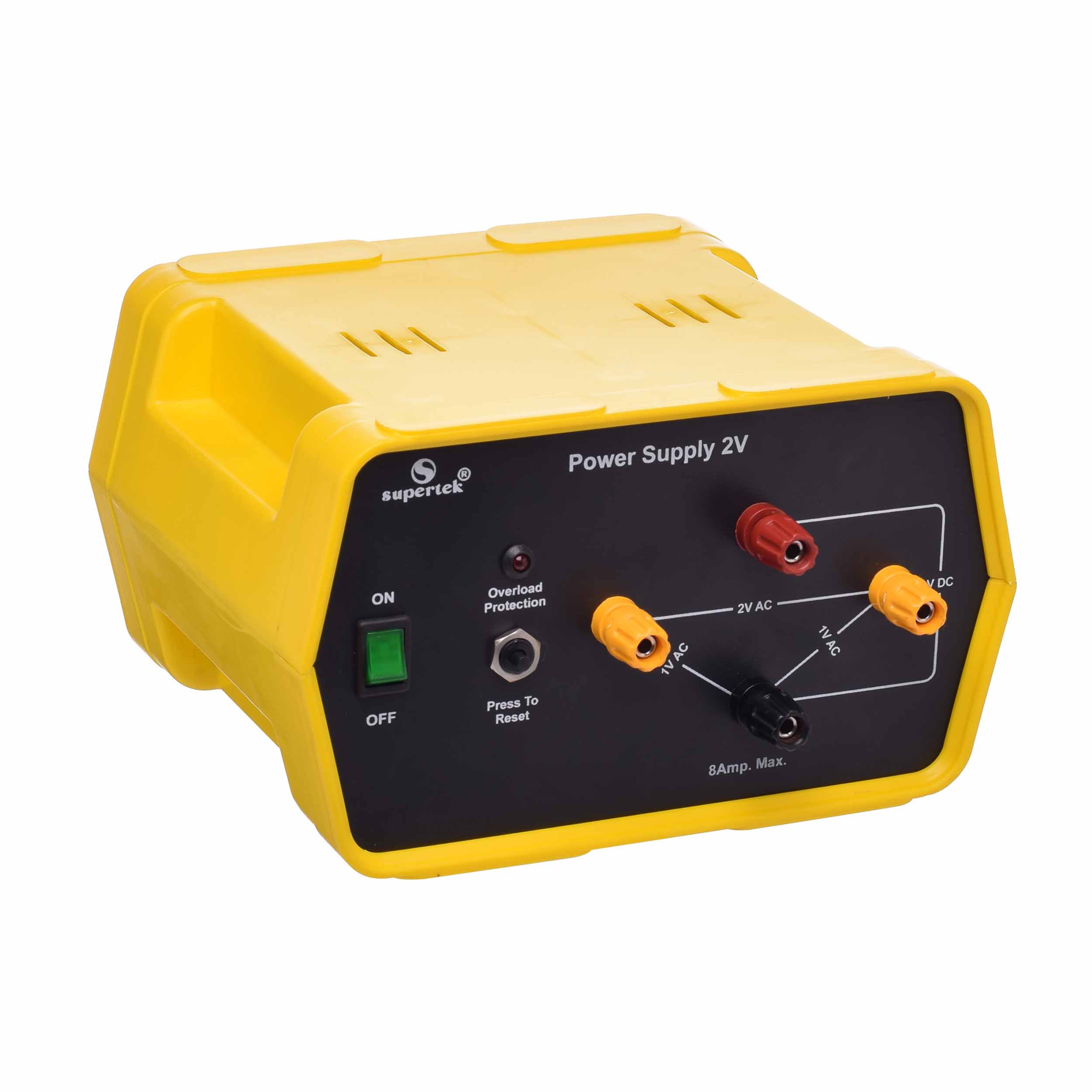

For Westminster Electromagnetic Kit giving 1 V full wave rectified D.C. and 1 and 2V.A.C. outputs at 8A max. The circuit diagram is printed on the top panel which also carries mains switch, light indicator and output sockets for D.C. and A.C. With 1.5 meter mains detachable cable.
In Stock
In Stock
