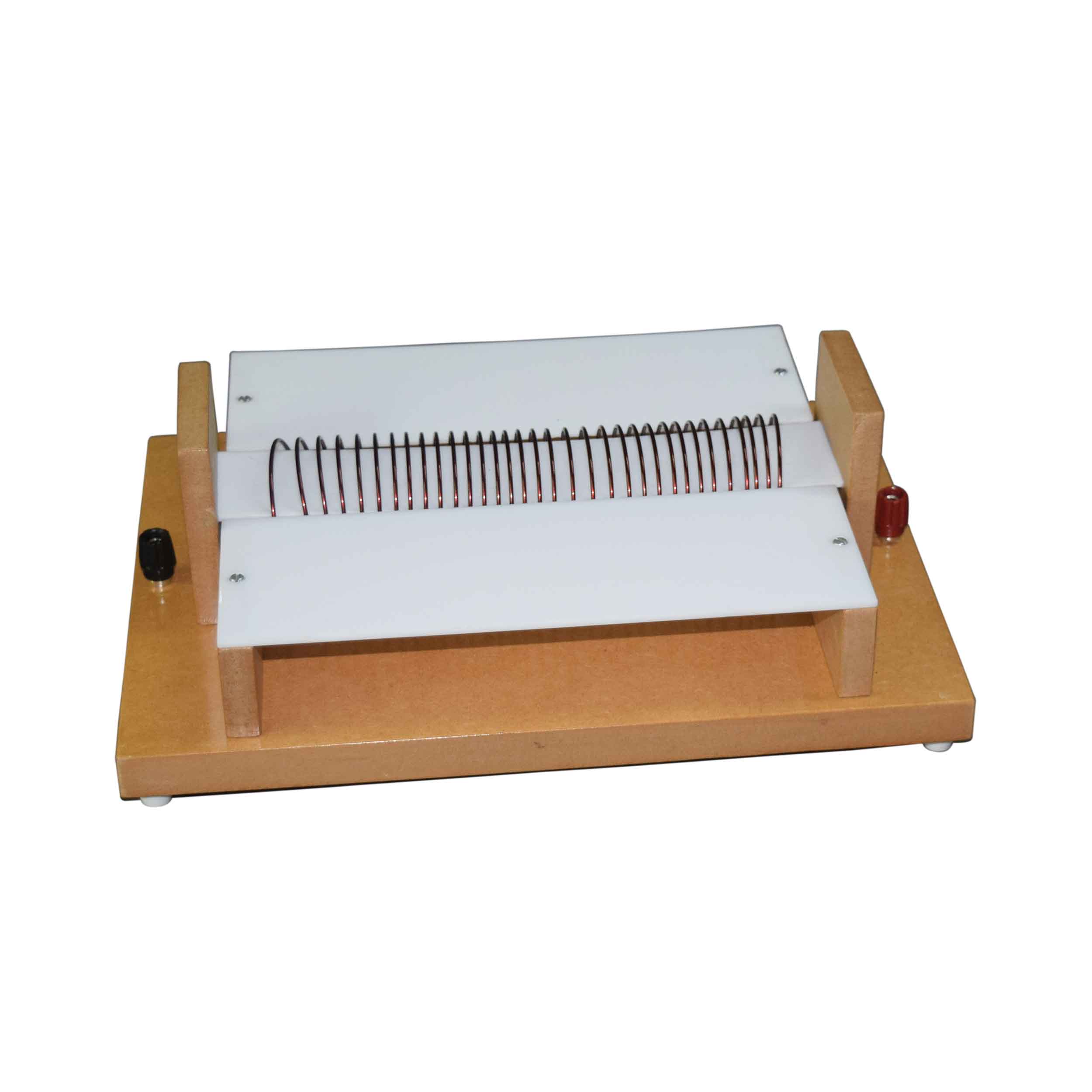

Open Wound Solenoid
Wide spaced heavy gauge copper wire coil to carry current up to 10A is mounted on a base with 4 mm socket terminals. A platform is supported across the centre of the coil to show the field by use of iron filings or a small compass. Dimension of coil 150 x 50 mm dia.
In Stock
In Stock
