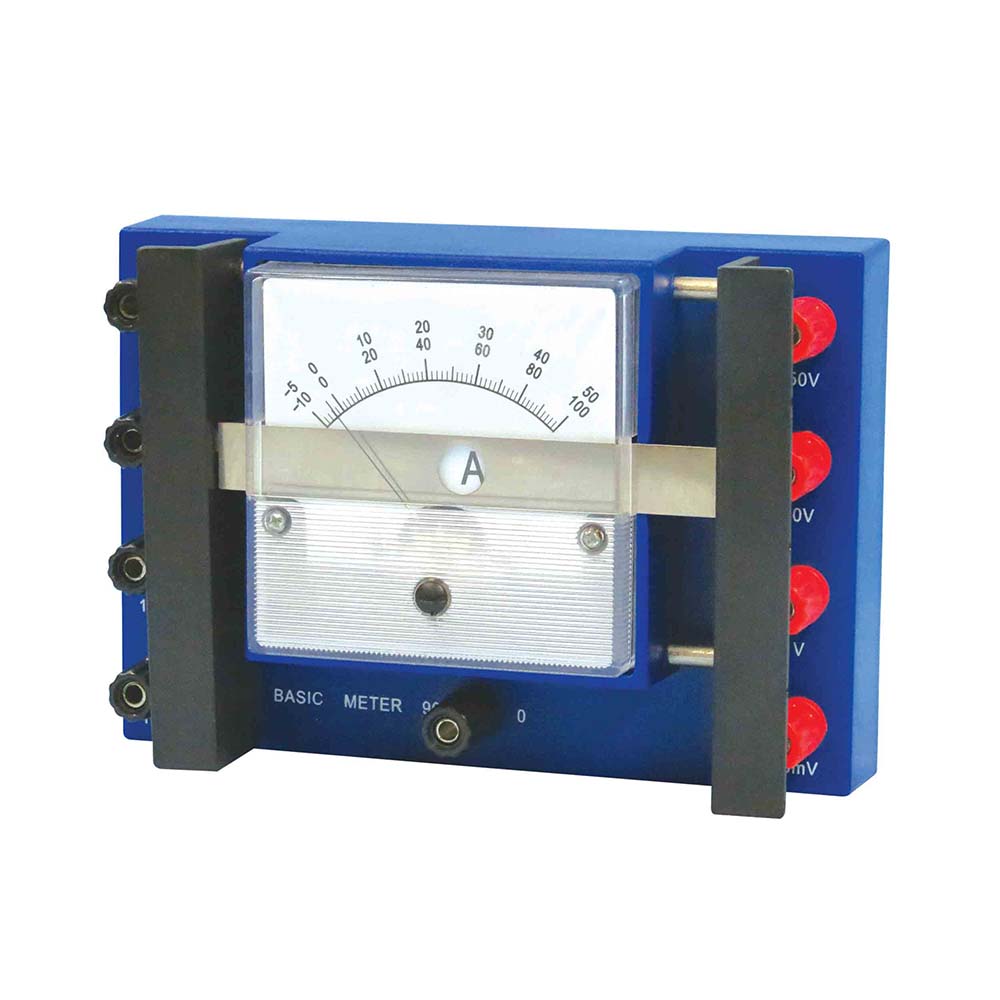

Multirange Meter
Design to serve dual purpose as volt meter and ammeter. It offers quadruple range. A slide selector is provided to select the required range.
Measuring range
Volt: 0-100 mV, 1V, 10V and 50V.
Ampere: 0-100μA, 100 mA, 1A and 5A.
Accuracy: ±2.5 FSD.
Dimension : 160 x 115 x 60 mm approx.
In Stock
In Stock
