Monocular Microscope
- Viewing Head – Monocular, Inclined at 30°/45° Rotatable
- Eyepiece – WF 10x, WF 15x
- Nosepiece – Quadruple Nosepiece
- Achromatic Objectives – 4x, 10x, 40x (SL)
- Stage – Plain Stage with Side Clips
- Focusing – Coaxial Knobs for Coarse and Fine focus
- Condenser – Fixed Two Lens Abbe Condenser NA 1.25 with iris diaphragm, filter holder and blue filter
- Illumination – LED Illumination with adjustable brightness
- Accessories – Dust Cover and Cleaning Cloth
- Packaging – Styrofoam
In Stock
| Cat. No. | Inclined | Quantity | |
|---|---|---|---|
| BLM33C | at 30° | ||
| BLM43C | at 45° |
Related Products
Related products
-
Microscopes

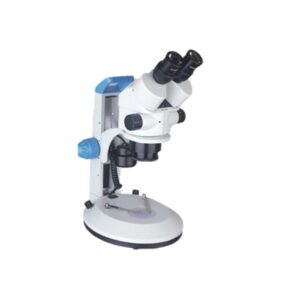

Stereo Microscope
Optical System
- Type: Greenough optical system for 3D viewing of samples.
- Design: Plug-and-play design for easy setup.
Zoom & Magnification
- Zoom Ratio: 4:1 to 5:1.
- Magnification: Minimum 8x to 35x with a 1x objective and 10x eyepiece.
- Maximum Resolution: 170 lp/mm.
- Working Distance: 100 mm.
Eyepiece
- Type: 10x with Field of View (FOV) 23.
- Viewing Angle: Adjustable from 45° to 60°.
- Interpupillary Adjustment: 50 mm to 75 mm or more.
Focus Mechanism
- Feature: Tool-free tension adjustment for ease of use.
Illumination
- Built-in Lighting:
- Reflected Light: 6500 K, constant-color temperature LED, 25,000-hour lifespan.
- Transmitted Light: 4500 K, constant-color temperature LED, 25,000-hour lifespan.
- Control: Variable light intensity control for both reflected and transmitted light.
- Modes: Reflected and transmitted light can be used separately or simultaneously.
- Reflected Illumination: Inbuilt 3-directional (fill, top, and oblique) illumination.
- Energy Efficiency: Auto shut-off after 120 minutes of inactivity.
Digital Camera
- Type: Inbuilt high-definition 5 MP (2592 x 1944) or higher CMOS camera.
- Light Distribution: 50% visual and 50% camera.
- Interface: HDMI, USB 2.0.
Modes
- HD Mode: Live image streaming at 1920 x 1080p to an HD display.
- Image Capture: Storage directly to an SD card.
Features
- Basic image capture.
- Simple measuring and annotation applications.
Accessories
- Storage: SD memory card for image storage.
- System Requirements: Branded PC with the following specifications:
- Processor: Core i7 or better (13th Gen or later).
- RAM: 16 GB or more.
- Storage: 1 TB SSD or more.
- Graphics: Dedicated graphic card.
- Display: 21-inch HD monitor or larger.
- Operating System: Windows 10 or newer.
SPIM-01 -
Microscopes

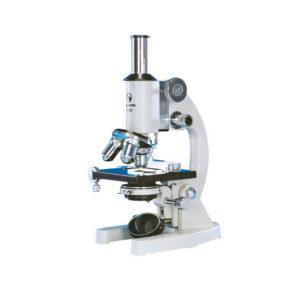

Student Microscope Model 20202
General Features
- Pressure die-cast parts to ensure strength and uniformity.
- Well proportioned stable, rigid and vertical body inclinable through 90°.
- Mechanical tube length 160 mm.
- Separate knobs for coarse and fine focussing. Coarse knobs are with tension adjustment arrangement.
- Triple revolving nose-piece with international standard threads, with click stops ensuring correct centering.
- High grade achromatic objectives and Huygenian eye-pieces for sharp and aberration free image.
- Safety stopper to prevent damage to slides and objectives.
- Fixed square stage of 110×110 mm with two nonremovable stage clips.
- Sub-stage plano concave daylight mirror reflector in metal mount, replaceable by an electrical illuminator.
- Smooth black or scratch resistant grey epoxy finish.
- Dust cover and cleaning cloth.
- Packed in moulded styrofoam box or wooden cabinet with lock and key.
OPTICS
Eye-pieces : Huygenian x10 and x15
Objectives : Achromatic x10, and x40 (SL)
Magnification : x100 to x 600B10070 -
Microscopes

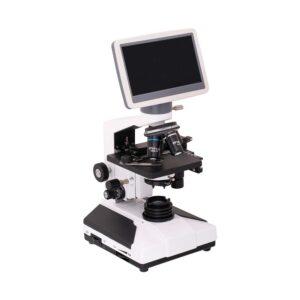

Digital Microscope
Main Body – Ergonomically Designed, Aluminium Dia Casted Sturdy Body.
Viewing – 360° Rotatable & 45° Inclined Monocular Head Having Hard Coated Prism.
Objective – Anti-fungal & Anti Reflection Coated 4x, 10x 40x & 100x Oil Immersion Semi-plan Achro Din Objective,
Fully Brass Made with Great Design.Focussing – Separate Coarse & Highly Sensitive Graduated Fine Focussing Knobs.
Light Source – High Quality Led Illumination & SMPS Based 100v-. 220v Wide Voltage Range.
Eye-Pieces – Anti-fungal & Anti-reflection Coated 10x Wide-field &15x Wide-field Eye-pieces with Positive Stop Clicks.
Stage – Graduated Rectangular Brass Made Mechanical Stage with Co-axial Movement.
Nosepiece – Outward Quadruple Brass Made Nosepiece.
Magnification Setting – 8 Magnification Setting 40x, 60x, 100x, 150x, 400x, 600x, 1000x & 1500x.
Condenser – Aluminium Made Abbe 1.25 N.A Type Condenser with Copper Iris Diaphragm & Swing In-swing Out Filter Holder.
Packing & Accessories – In Box Content-main Body, Monocular Viewing Head, 4 Objectives, 2 Eye-pieces, Dust Cover, Cleaning Cloth, Immersion Oil, Power Cable with 50 Blank Slides & Cover-slips. Packed In Styrofoam Box & Card Board Box With Instruction Manual.
IM-01 -
Microscopes

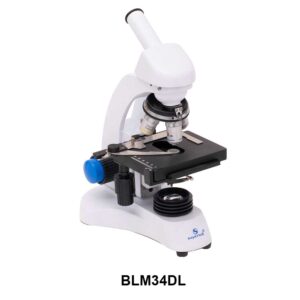

Monocular Microscope
- Viewing Head – Monocular, Inclined at 30°/45° Rotatable
- Eyepiece – WF 10x, WF 15x
- Nosepiece – Quadruple Nosepiece
- Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil)
- Stage – Double Layer Mechanical Stage with 70 x 27 mm X-Y travel range
- Focusing – Coaxial Knobs for Coarse and Fine focus
- Condenser – Adjustable Two Lens Abbe Condenser NA 1.25 with Iris Diaphragm, filter holder and blue filter
- Illumination – LED Illumination with adjustable brightness
- Accessories – Dust Cover and Cleaning Cloth
- Packaging – Styrofoam
BLM34DL -
Microscopes
Pathological Microscope Model 20208
This is a standardised microscope for medical institutions and pathological laboratories.
In addition to general specifications for student microscopes:- Fine motion knob is graduated to read to 0.002 mm.
- Fitted with detachable graduated mechanical stage.
- A sub-stage iris diaphragm with Abbe condenser N.A.1.2 which moves up and down with rack and pinion motion.
OPTICS
Eye Pieces : Huygenian x5, x10, x15 (any two).
Objectives : Achromatic x10, x40 (spring loaded) and x100
(spring loaded) oil immersion.B10080
