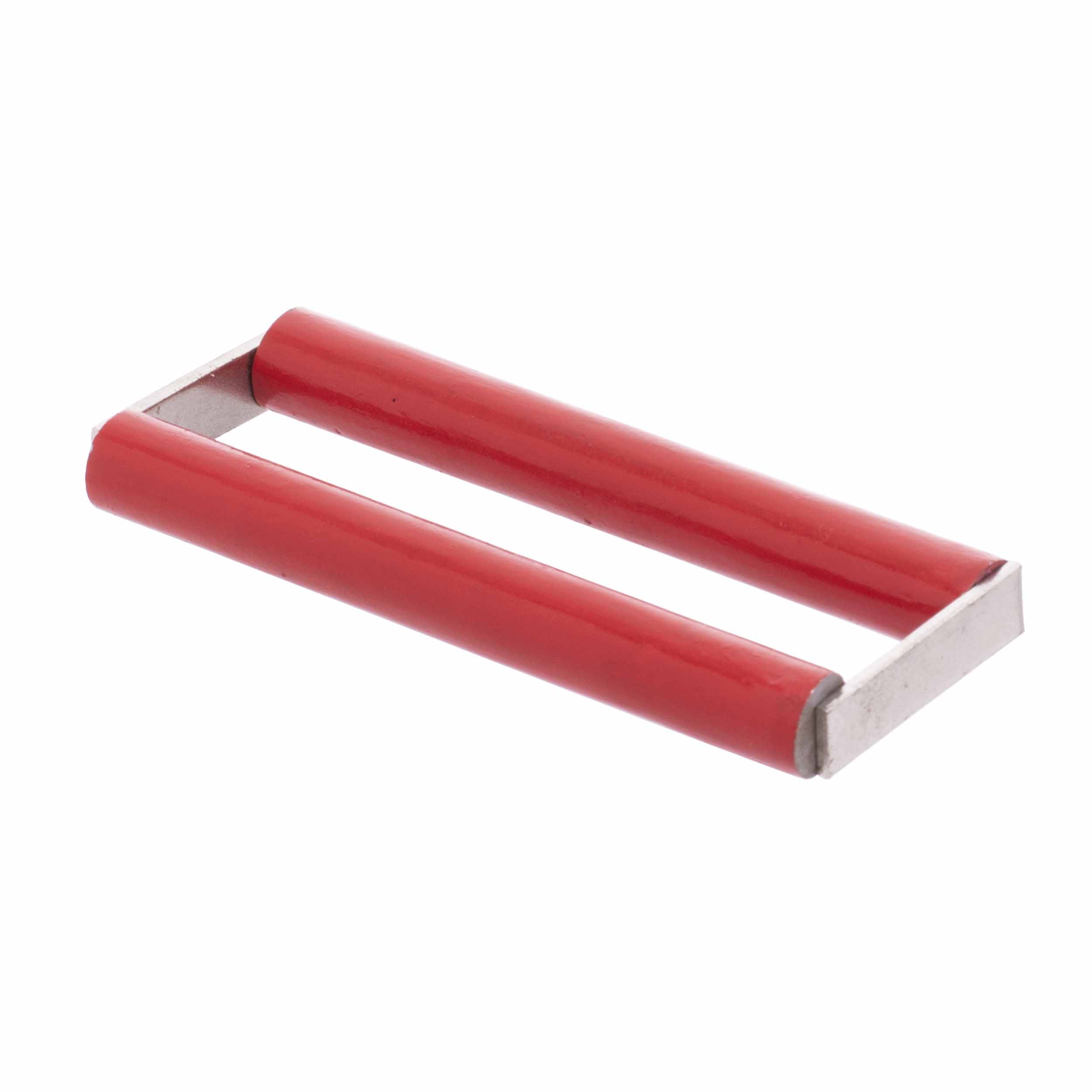

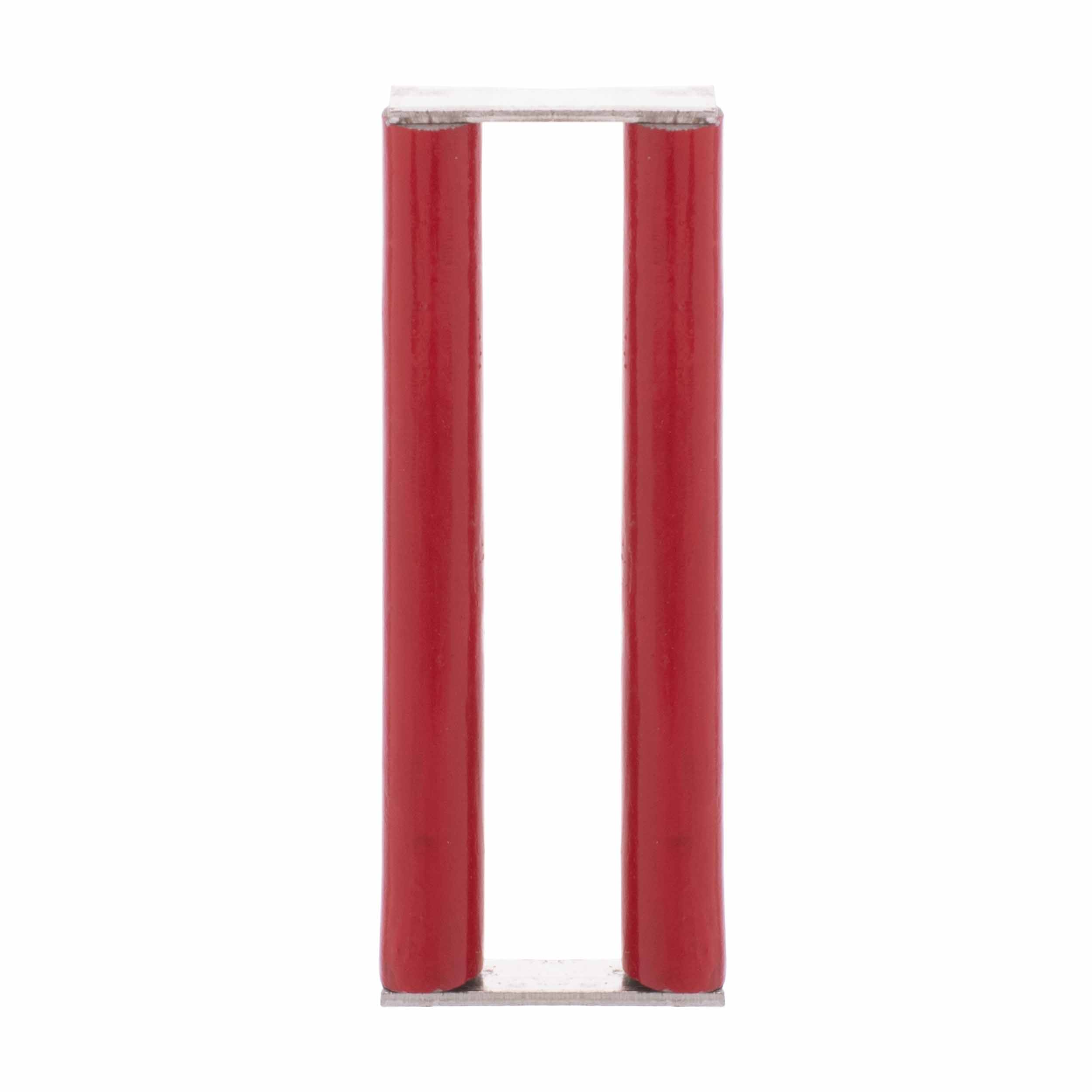

| Cat. No. | Length x diam mm | Quantity | |
|---|---|---|---|
| PH40075/1 | 37 x 10 | ||
| PH40075/2 | 50 x 10 | ||
| PH40075/3 | 75 x 10 | ||
| PH40075/6 | 37 x 12 | ||
| PH40075/7 | 50 x 12 | ||
| PH40075/8 | 75 x 12 | ||
| PH40075/9 | 100 x 12 |
