LCR Resonance Apparatus
Objective : To plot Frequency Vs. Current Characteristics of LCR circuit when connected in series or in parallel.

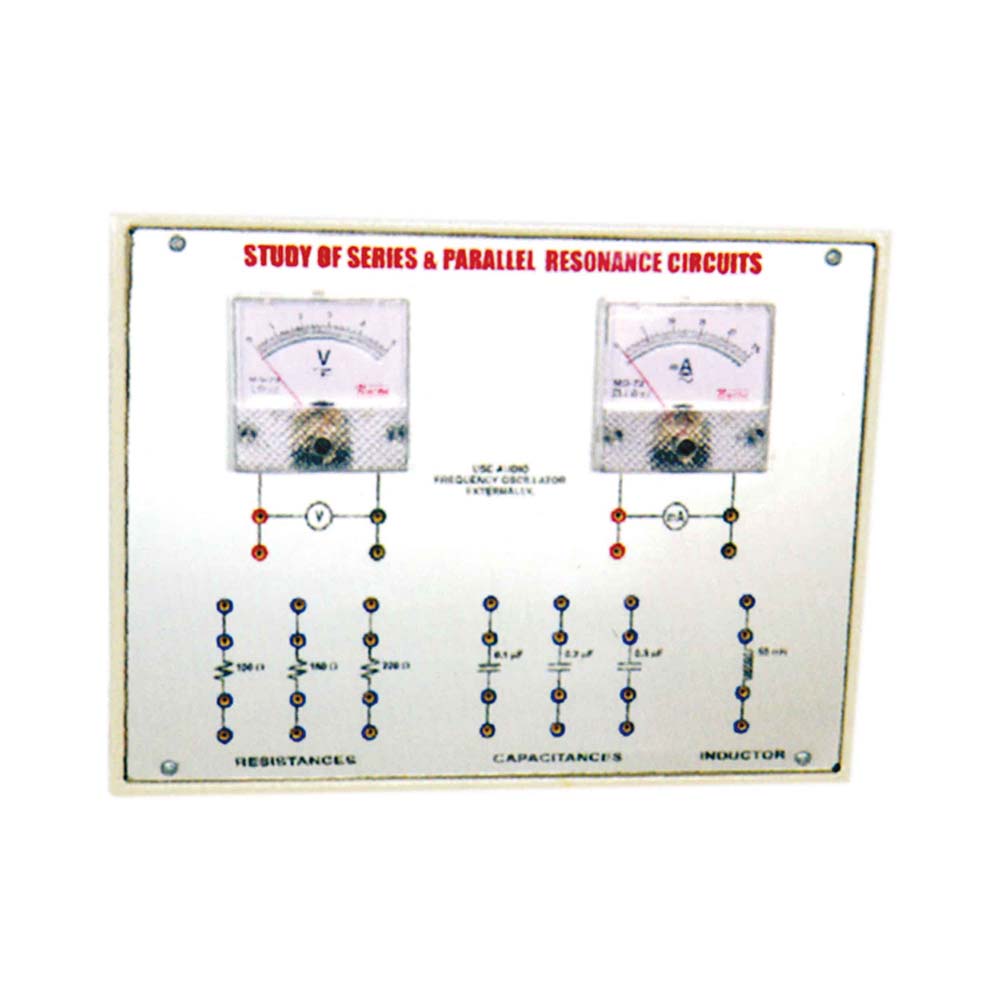

Features : Instrument comprises of 3 Resistances, 3 Capacitors and 1 Inductance connected inside and connections brought out at Sockets. 2 AC moving coil meters to measure voltage and current.
Optional Acc. : Audio Frequency Function Generator.
