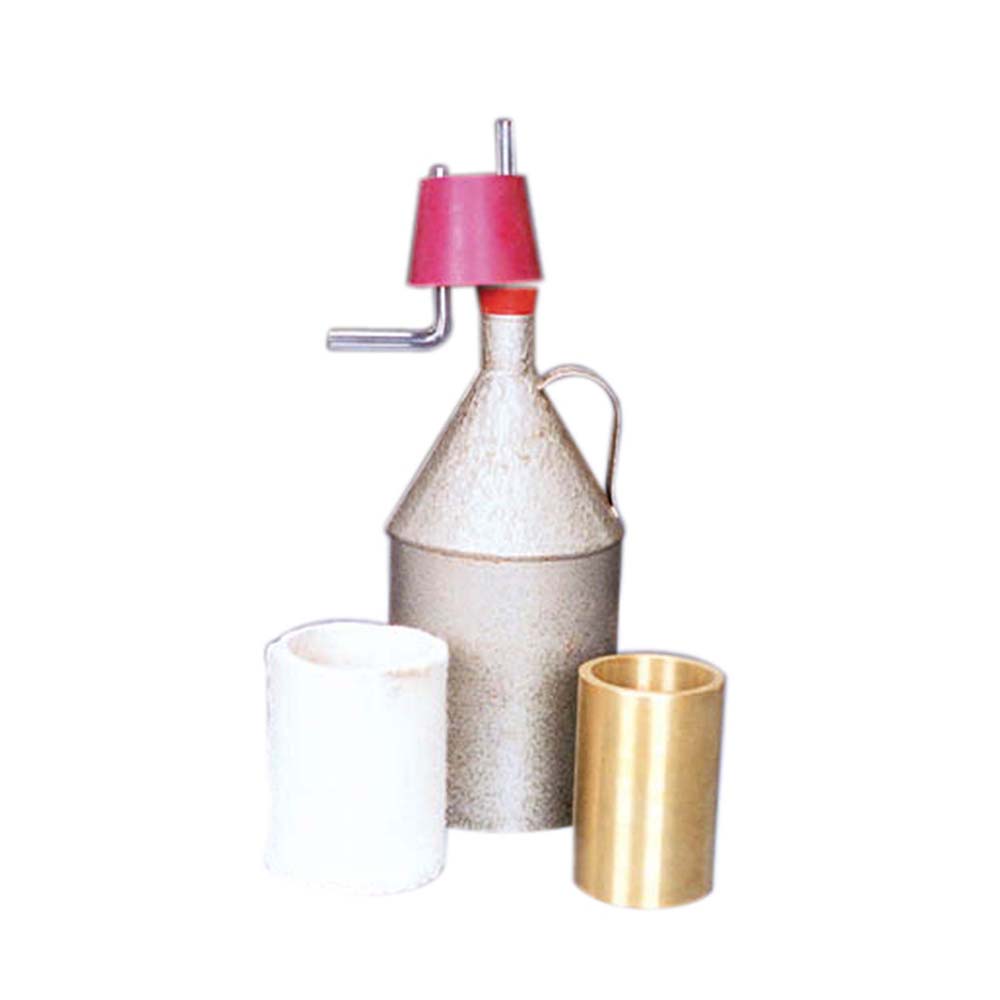

Latent Heat of Steam Apparatus
Consists of a thick brass calorimeter 90 x 65 mm, a bung with steam inlet and outlet tubes, a felt cover and a one liter brass sheet boiler with bung to take the steam tube.
In Stock
In Stock
Related Products
Related products
-
Heat
Linear Expansion
A high quality apparatus to determine precisely co-efficient of expansion of various metals. An aluminium channel carries a 60 cm long metal rod enclosed in a heating jacket having three nipples for water intake, water outlet and thermometer insertion. Dial indicator is a precision instrument sensitive to 0.01 mm / division and is securely mounted. As the apparatus works with hot water, there is no danger from any steam escaping and causing burns on the skin. Complete with four expansion rods of steel, brass, copper and aluminium.
PH20047 -
Heat
Charle’s Law Kit
A glass U-tube of 10 mm diameter the shorter limb of which has a stopcock near top and the longer limb can take a plastic tube. A scale is provided and can be attached to the shorter limb. With red indicator oil but without 2000 ml tall form beaker which acts as a reservoir.
PH20093 -
Heat
Pyrometer
Fitted on a wooden base cast metal uprights and rod mountings. A 20-0-20 scale is provided to notice the expansion in rods. The counter weighted needle is used for easy reading. A knurling screw is provided for zero adjustment. Supplied with three metal rods one of each Aluminium, Brass and Steel.
PH20045N
