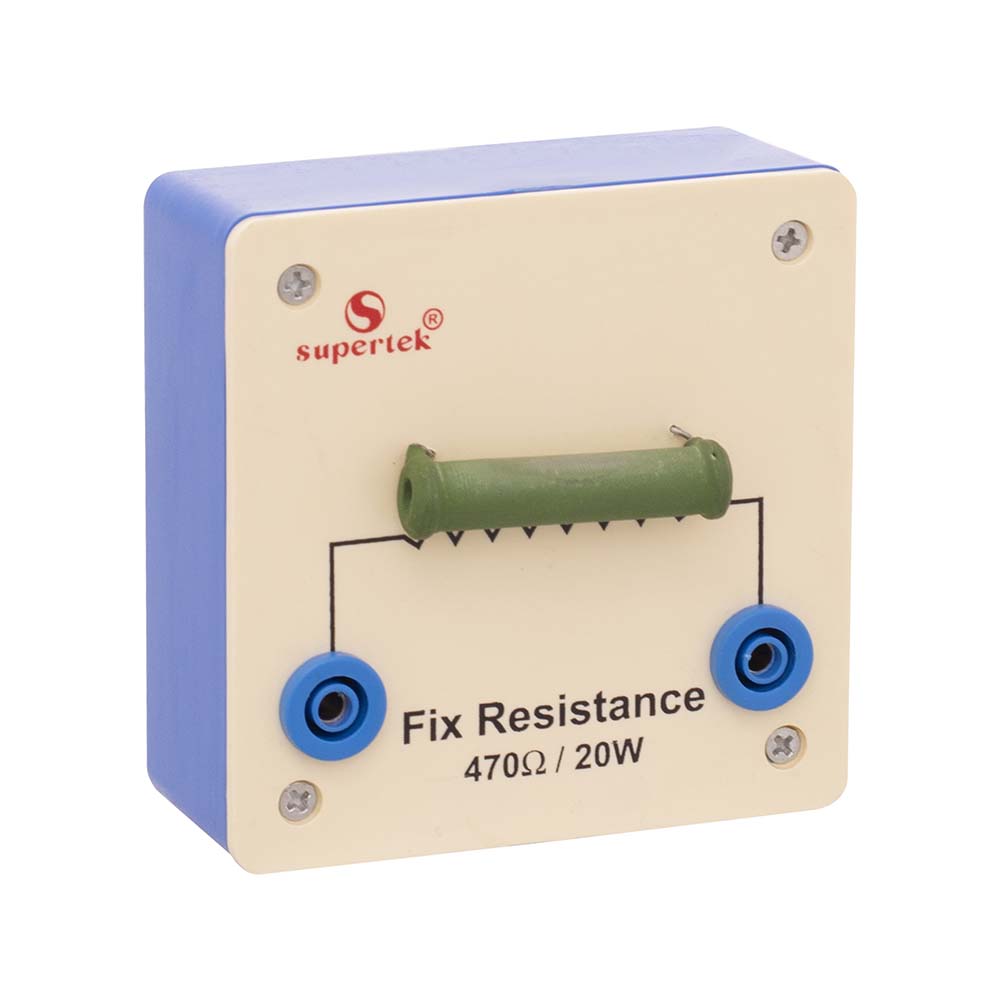

Fix Resistance
A heavy duty resistor (50W) of fixed value is mounted on a plastic base. 4mm sockets are provided for connections.
In Stock
| Cat. No. | Ohms | Quantity | |
|---|---|---|---|
| PH50492/1 | 0.1 Ω | ||
| PH50492/2 | 1 Ω | ||
| PH50492/3 | 10 Ω | ||
| PH50492/4 | 100 Ω | ||
| PH50492/5 | 150 Ω | ||
| PH50492/6 | 220 Ω | ||
| PH50492/7 | 470 Ω | ||
| PH50492/8 | 1 kΩ | ||
| PH50492/9 | 10 kΩ | ||
| PH50492/10 | 100 kΩ |
