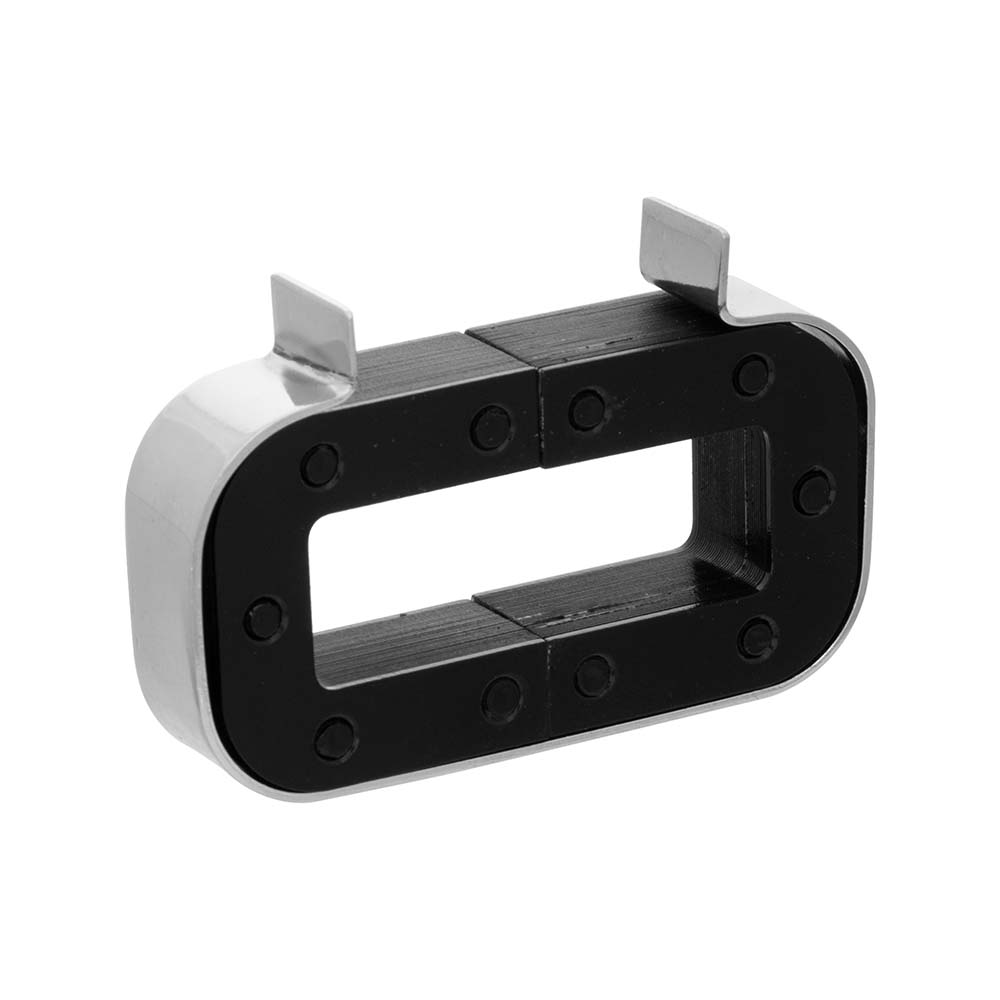

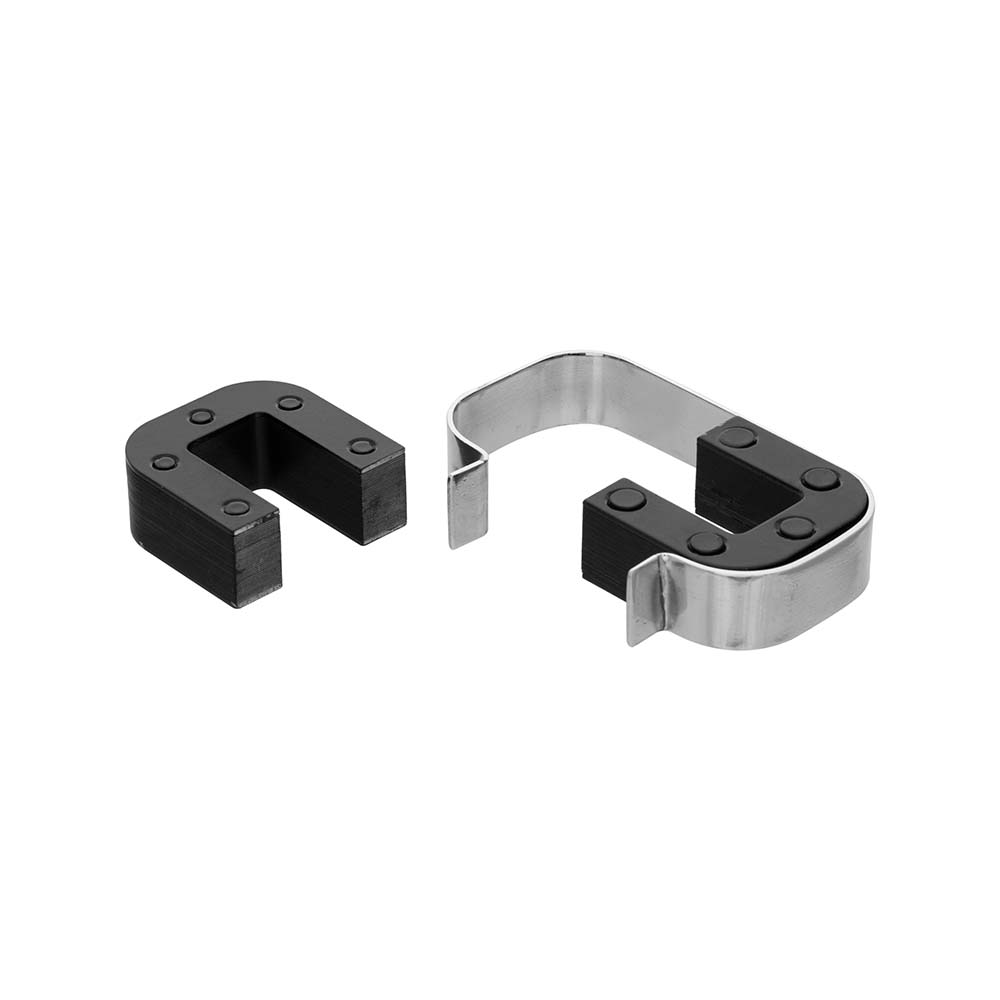

Double ‘C’ Core & Clip
As used in Westminster Electromagnetic Kit. Size 90 x 50 x 22 mm.
In Stock
In Stock
Related Products
Related products
-
Electricity
Transformer Stand and Core
Apparatus is designed primarily for demonstration of the basic principles of transformers. It consists of a laminated U-core with laminated I-core, both with 30 x 25 mm cross section to form a closed core of size 105 x 140 mm. Heavy aluminium alloy stand with removable clamping rods, 2 pole pieces, each 65 x 25 x25 mm with one end cone shaped, to accept support rod and shading ring. Poles also have a hole drilled through lengthwise to take a light beam.
PH50175 -
Electricity
Power Supply, 2V
For Westminster Electromagnetic Kit giving 1 V full wave rectified D.C. and 1 and 2V.A.C. outputs at 8A max. The circuit diagram is printed on the top panel which also carries mains switch, light indicator and output sockets for D.C. and A.C. With 1.5 meter mains detachable cable.
PH50163 -
Electricity
Circuit Breaker Demonstration
Investigate the working principle of circuit breaker type fuse, with this demonstration model. The apparatus is built on a robust plastic base and includes resistive loads to simulate external wiring circuits. Applications of the thermal response of bimetal strips and also electromagnetism (movement from a solenoid) are clearly demonstrated in this model.
When a 12VDC supply is connected (not supplied) the LED lights to show that current is flowing in the external circuit and the bi-metal strip can be seen to bend as its heater coil raises the temperature. After a few minutes the bending is sufficient to trip the mechanism and the current path is broken. At any current selection a short circuit situation can be initiated by pressing the red button and this produces an immediate response from the solenoid to disconnect the supply.PH50136C
