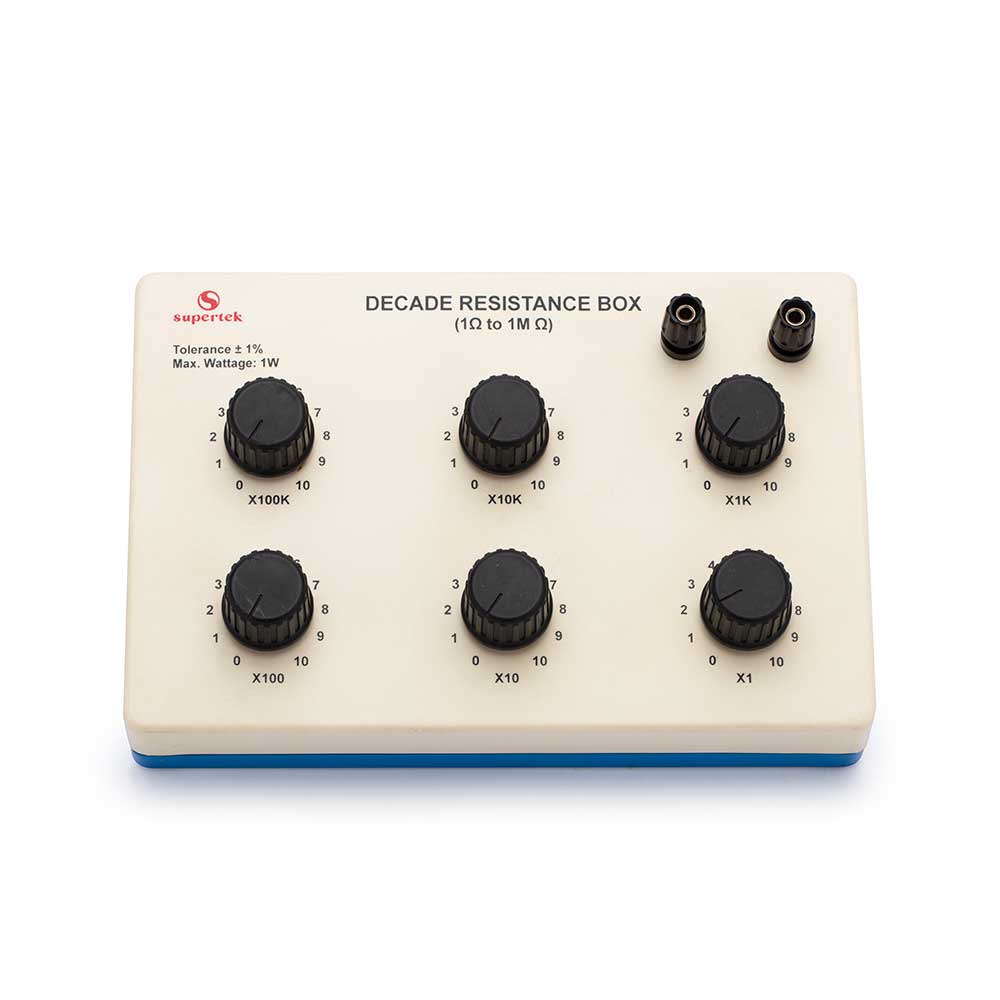

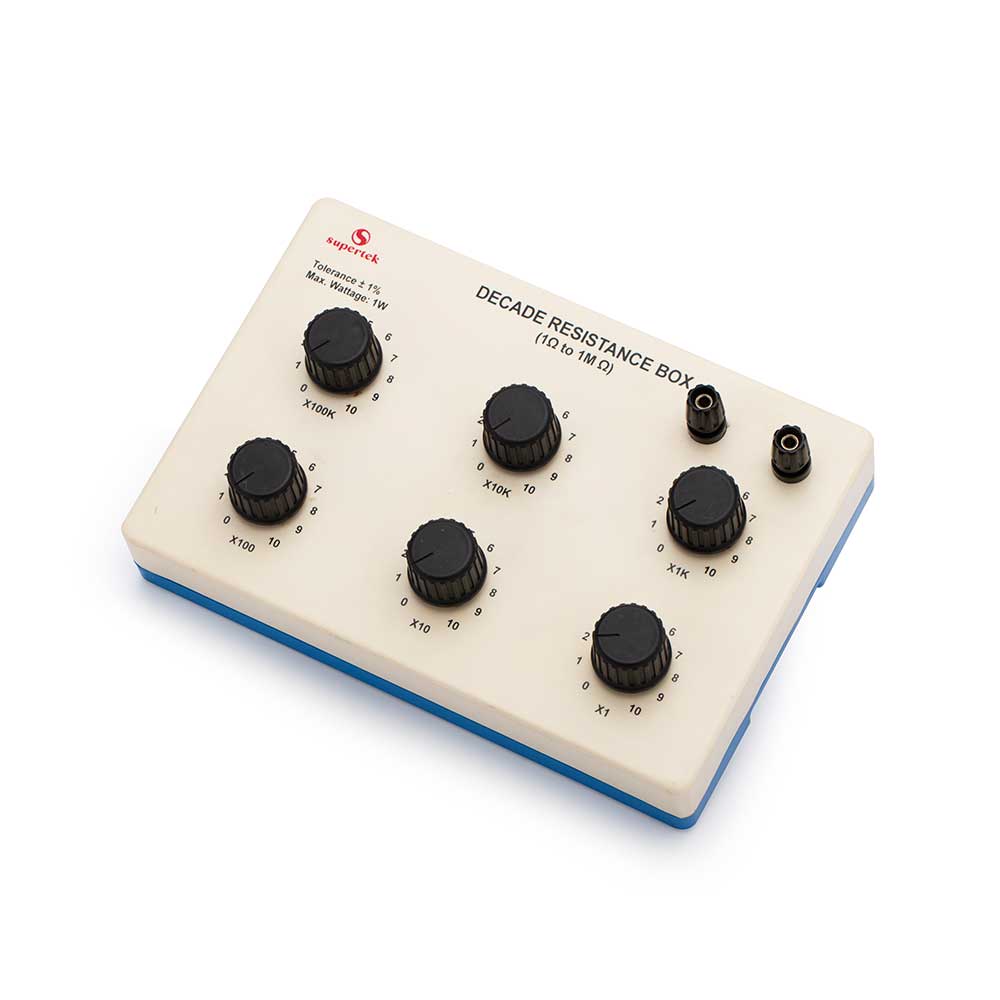

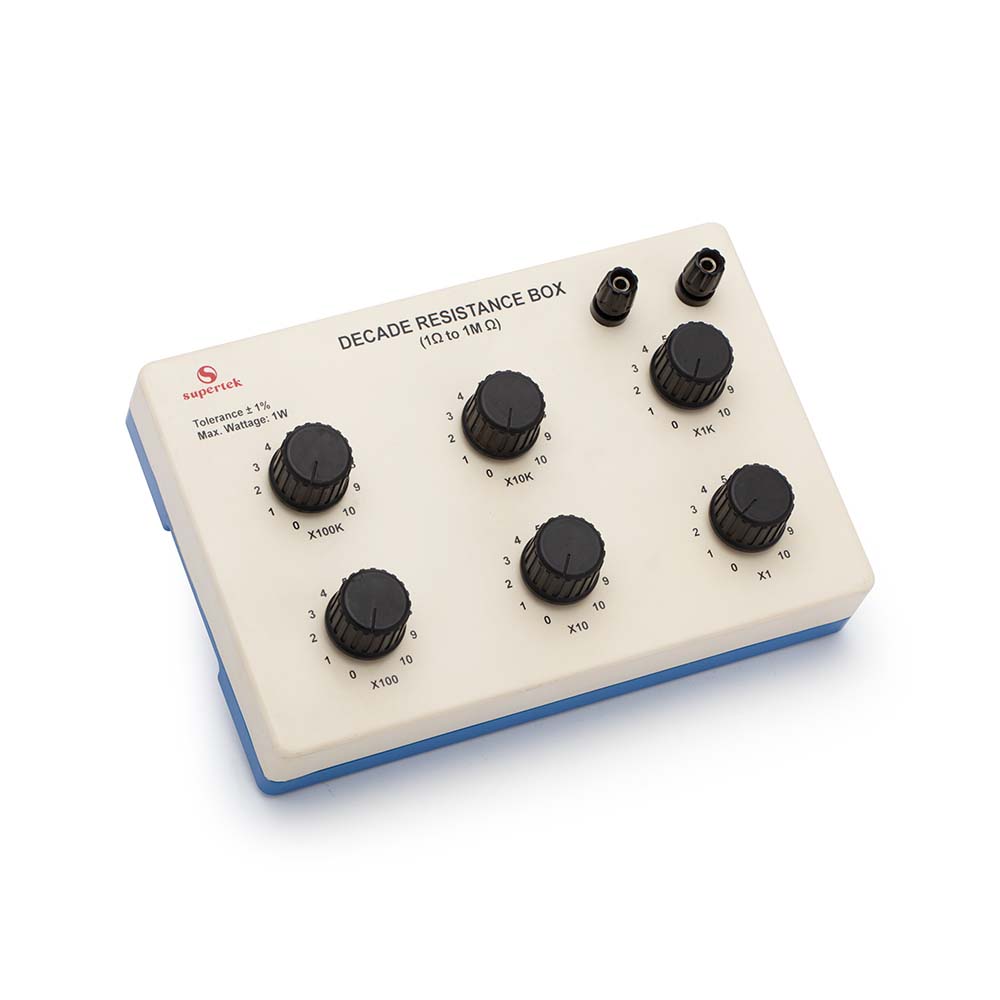

Decade Resistance Box
Consists of six rotary switches in decade sequence mounted on a plastic box with each value clearly marked. The total resistance value can vary from 0 to 1,111,110 x 1 Ω. Accuracy is within ±1 %. Two universal binding posts are provided for easy connections.
