Microscopes
Binocular Microscope
- Viewing Head – Binocular, Inclined at 30°/45° Rotatable; 55-75mm interpupillary distance
- Eyepiece – WF 10x, WF 15x
- Nosepiece – Quadruple Nosepiece
- Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil)
- Stage – Double Layer Mechanical Stage with 70 x 27 mm X-Y travel range
- Focusing – Coaxial Knobs for Coarse and Fine focus
- Condenser – Adjustable Two Lens Abbe Condenser NA 1.25 with Iris Diaphragm, filter holder and blue filter
- Illumination – LED Illumination with adjustable brightness
- Accessories – Dust Cover and Cleaning Cloth
- Packaging – Styrofoam
BLB34DL
Availability:
In Stock
| Cat. No. | Inclined | Quantity | |
|---|---|---|---|
| BLB34DL | at 30° | ||
| BLB44DL | at 45° |
Related Products
Related products
-
Microscopes

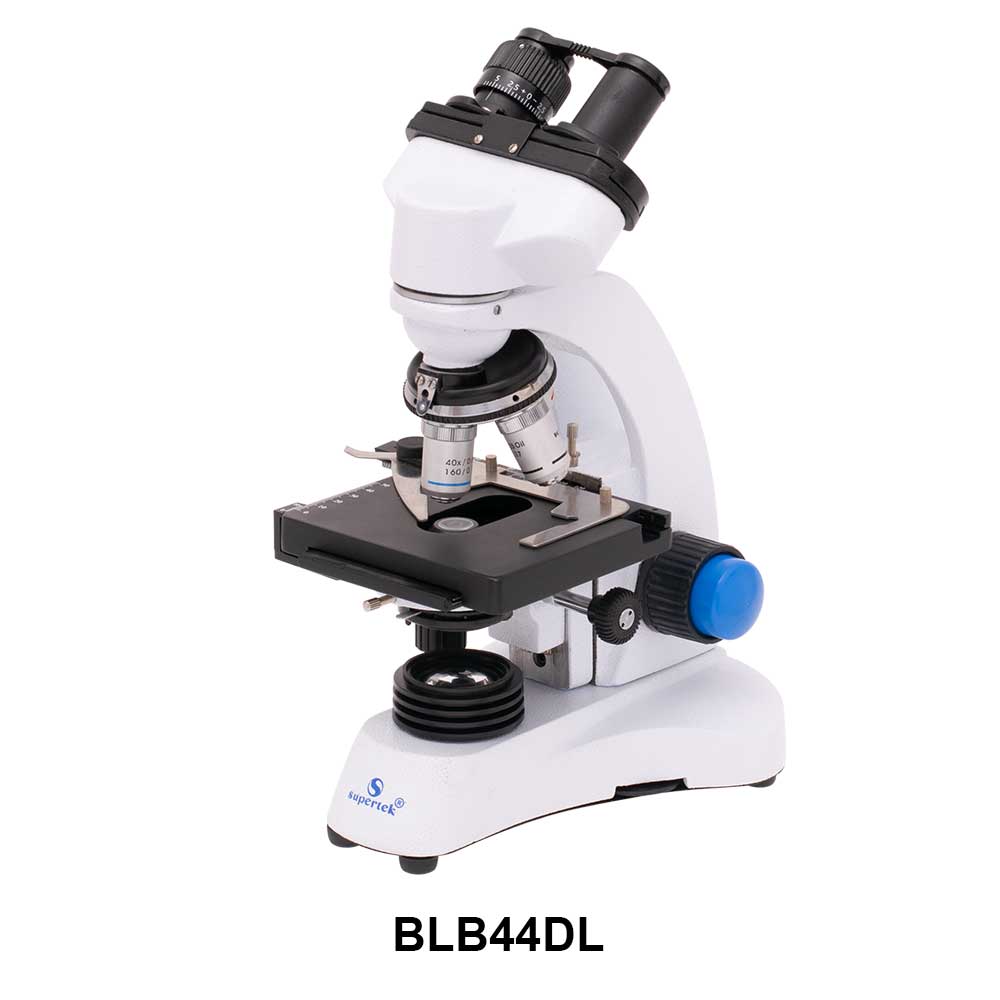

Binocular Microscope
- Viewing Head – Binocular, Inclined at 45° Rotatable; 55-75mm interpupillary distance.
- Eyepiece – WF 10x, WF 15x.
- Nosepiece – Quadruple Nosepiece.
- Achromatic Objectives – 4x, 10x, 40x (SL), 100x (SL, Oil).
- Stage – Double Layer Mechanical Stage with 70 x 27mm
X-Y travel range. - Focusing– Coaxial Knobs for Coarse and Fine focus.
- Condenser – Adjustable Two Lens Abbe Condenser N. A. 1.25
with Iris Diaphragm, filter holder and blue filter. - Illumination – LED Illumination with adjustable brightness.
- Accessories – Dust Cover and Cleaning Cloth.
- Packaging – Styrofoam.
BLB44DL -
Microscopes
Student Microscope Model 20202
General Features
- Pressure die-cast parts to ensure strength and uniformity.
- Well proportioned stable, rigid and vertical body inclinable through 90°.
- Mechanical tube length 160 mm.
- Separate knobs for coarse and fine focussing. Coarse knobs are with tension adjustment arrangement.
- Triple revolving nose-piece with international standard threads, with click stops ensuring correct centering.
- High grade achromatic objectives and Huygenian eye-pieces for sharp and aberration free image.
- Safety stopper to prevent damage to slides and objectives.
- Fixed square stage of 110×110 mm with two nonremovable stage clips.
- Sub-stage plano concave daylight mirror reflector in metal mount, replaceable by an electrical illuminator.
- Smooth black or scratch resistant grey epoxy finish.
- Dust cover and cleaning cloth.
- Packed in moulded styrofoam box or wooden cabinet with lock and key.
OPTICS
Eye-pieces : Huygenian x10 and x15
Objectives : Achromatic x10, and x40 (SL)
Magnification : x100 to x 600B10070 -
Microscopes
Student Microscope Model 20200
General Features
- Pressure die-cast parts to ensure strength and uniformity.
- Well proportioned stable, rigid and vertical body inclinable through 90°.
- Mechanical tube length 160 mm.
- Separate knobs for coarse and fine focussing. Coarse knobs are with tension adjustment arrangement.
- Triple revolving nose-piece with international standard threads, with click stops ensuring correct centering.
- High grade achromatic objectives and Huygenian eye-pieces for sharp and aberration free image.
- Safety stopper to prevent damage to slides and objectives.
- Fixed square stage of 110×110 mm with two nonremovable stage clips.
- Sub-stage plano concave daylight mirror reflector in metal mount, replaceable by an electrical illuminator.
- Smooth black or scratch resistant grey epoxy finish.
- Dust cover and cleaning cloth.
- Packed in moulded styrofoam box or wooden cabinet with lock and key.
OPTICS
Eye-pieces : Huygenian x10 and x15
Objectives : Achromatic x10, and x40 (SL)
Magnification : x100 to x 600B10065 -
Microscopes
Pathological Microscope Model 20208
This is a standardised microscope for medical institutions and pathological laboratories.
In addition to general specifications for student microscopes:- Fine motion knob is graduated to read to 0.002 mm.
- Fitted with detachable graduated mechanical stage.
- A sub-stage iris diaphragm with Abbe condenser N.A.1.2 which moves up and down with rack and pinion motion.
OPTICS
Eye Pieces : Huygenian x5, x10, x15 (any two).
Objectives : Achromatic x10, x40 (spring loaded) and x100
(spring loaded) oil immersion.B10080 -
Microscopes
Student Microscope Model 20204
General Features
- Pressure die-cast parts to ensure strength and uniformity.
- Well proportioned stable, rigid and vertical body inclinable through 90°.
- Mechanical tube length 160 mm.
- Separate knobs for coarse and fine focussing. Coarse knobs are with tension adjustment arrangement.
- Triple revolving nose-piece with international standard threads, with click stops ensuring correct centering.
- High grade achromatic objectives and Huygenian eye-pieces for sharp and aberration free image.
- Safety stopper to prevent damage to slides and objectives.
- Fixed square stage of 110×110 mm with two nonremovable stage clips.
- Sub-stage plano concave daylight mirror reflector in metal mount, replaceable by an electrical illuminator.
- Smooth black or scratch resistant grey epoxy finish.
- Dust cover and cleaning cloth.
- Packed in moulded styrofoam box or wooden cabinet with lock and key.
OPTICS
Eye-pieces : Huygenian x10 and x15
Objectives : Achromatic x10, and x40 (SL)
Magnification : x100 to x 600B10075
