Desk Stand Ammeter
Analog Moving Coil Ammeter is housed in a sturdy plastic case and the connections are brought out on the front panel and connected to 4mm colour coded battery terminals.
It is designed for educational purpose and bench top use in schools, colleges, universities, scientific, industrial and research labs.
Available in different current ranges for both AC and DC.
Single Ranges
50uA, 100uA, 250uA, 300uA, 500uA, 1mA, 5mA, 10mA,
50mA, 100mA, 300mA, 500mA, 1A, 3A, 5A, 10A
In Stock
| Cat. No. | Model | Description | Quantity | |
|---|---|---|---|---|

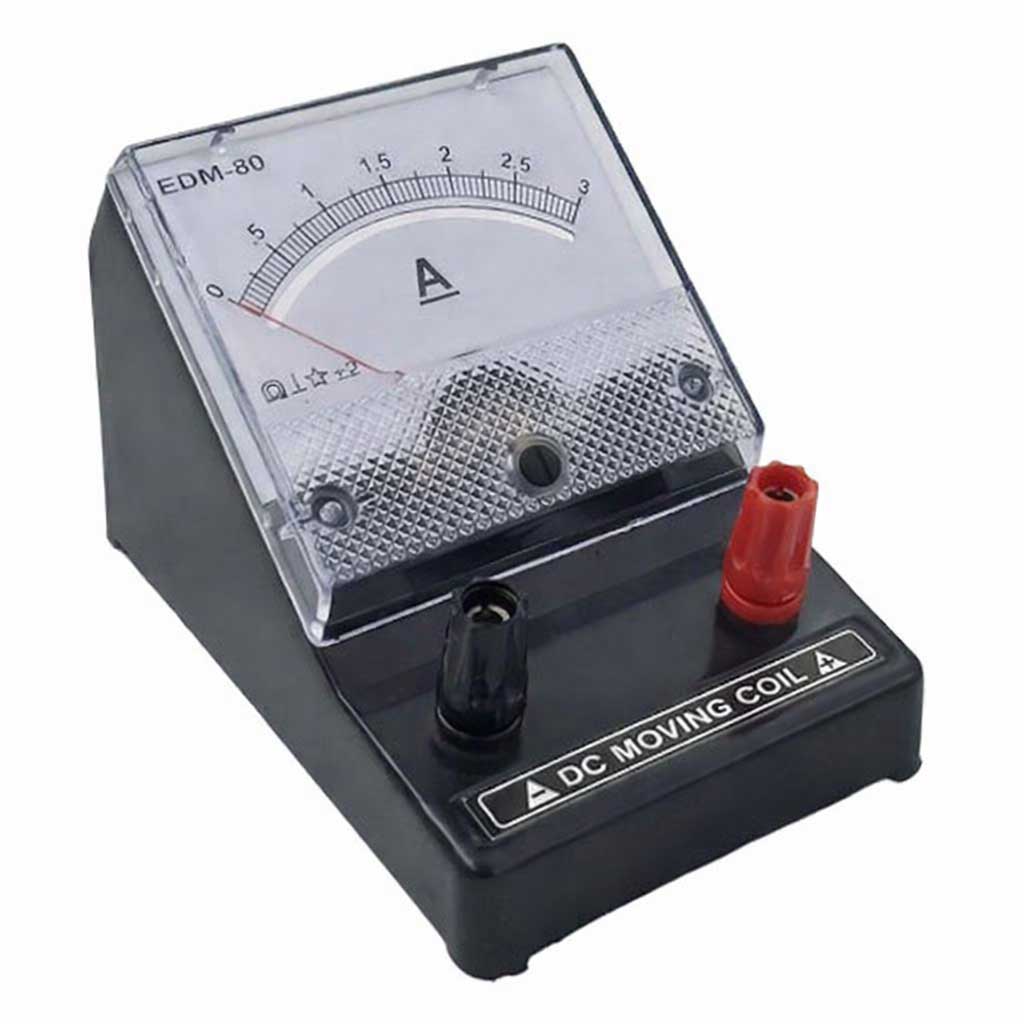

| PH63030R | EDM-80 | Scale Length approx. 65mm with anti-parallax mirror scale. Overall size approx. 120 x 80 x 85 mm. Accuracy: +/-2 F.S.D | ||

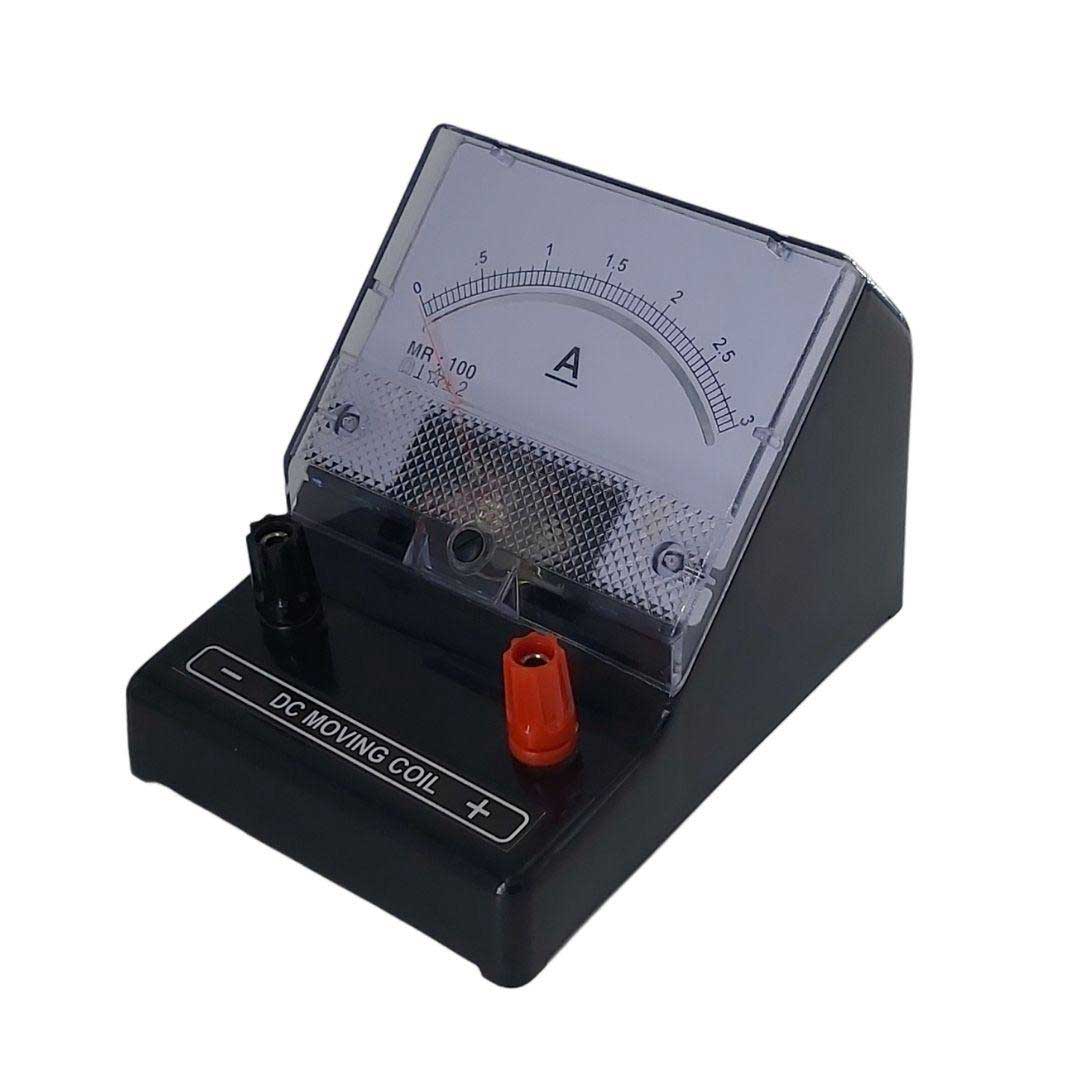

| PH63030R | MR-100 | Scale Length approx. 85mm with anti-parallax mirror scale. Overall size approx. 140 x 100 x 100 mm. Accuracy: +/-2 F.S.D |
