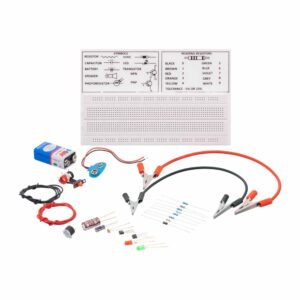

Fundamentals of Electronics Kit
This kit introduces students to Ohm’s Law, resistors, capacitors, semiconductors and transistors. This kit includes a breadboard on base, LEDs (Red and Green), capacitors, resistors, switch, buzzer, transistors (NPN and PNP), diode, photo resistor, connecting wires, battery and instruction manual.
- To Explain Basic Concept of Electronics.
- High Quality Solder Less Breadboard.
- Easy to Build and Learn.
- Symbolic Representation of Components.
- Color Coding Chart to Read the Resistor Values.
PH92080 -
Electronics
Transistor Characteristics Apparatus
This instrument is designed to study input and output characteristics of common emitter and common base PNP & NPN Transistors. Instrument comprises of two DC regulated power supplies 0 – 10 V DC (150 mA) and 0 – 1 V DC (150 mA). Four round meters for voltage and current measurement. Connections of supplies and transistors are brought out at 4mm Sockets. 4mm stackable lead and instruction manual is also provided with this instrument.
PH92110 -
Electronics
FET Characteristics Apparatus
This instrument is designed to study input and output characteristics of FET. Two DC regulated power supply 0 – 5 V DC (150 mA), 0 -15 V DC (150 mA), two round meters for voltage & one current meter are provided in this instrument. FET is mounted behind the panel. Connections of supplies, meters & FET are brought out at 4mm sockets. 4mm stackable lead and instruction manual is also provided with instrument.
PH92140 -
Electronics

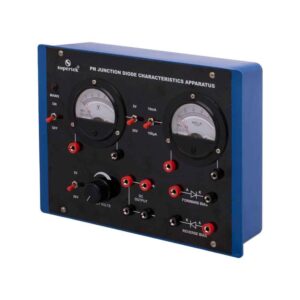

Semiconductor Diode/PN Junction Diode Characteristics Apparatus
This instrument is designed to study forward and reverse characteristics of PN Junction Diode. Instrument comprises of two DC Regulated Power Supplies 0 – 3 V DC (150 mA) and 0 – 30 V DC (150 mA). Two dual range round meters for voltage and current measurement are provided on the front panel. Connections of supplies, meters and PN Junction diode are brought out at 4mm sockets. 4mm stackable lead and instruction manual is also provided with instrument.
PH92150 -
Electronics
Zener Diode Characteristics Apparatus
This instrument is designed to study forward and reverse, voltage vs current characteristics of zener diode. A DC regulated power supply 0 – 15 V DC (150 mA), two round meters for voltage and current measurement are provided in this instrument. Three different value zener diodes mounted behind the panel. Connections of supplies, meters and zener diodes are brought out at 4mm sockets. 4mm stackable lead and instruction manual is also provided with instrument.
PH92160
