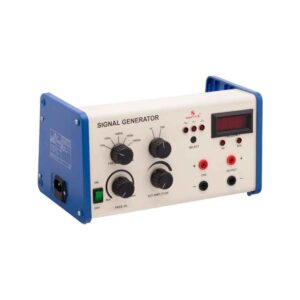

This signal generator is a useful test instrument capable of generating multiple waveform and offers excellent waves shape, signal linearity, waveform symmetry and frequency range with selection of sine, triangular and square wave and amplitude variable 10V peak to peak. 1Hz to 100kHz in five decade ranges selected by rotary switch named as frequency multiplier. Sine, triangular and square waveforms selected by push switch with LED indication. Output signal is 0-3.5 Vrms (10V peak to peak) open circuit continuously control with uncalibrated amplitude control knob. Mains rocker switch with indicator Light. Signal Generator is versatile for general laboratory use; output signal is adjustable with the combination of frequency multiplier and set frequency dial with a low level of distortion. Set frequency is displayed on a 4 seven segment display. Output Voltage is continuously variable with selector range 1V and 10V.There is two pair of output safety sockets. One for CRO output (experiment for amplification, filter etc.) and another pair of sockets to speaker to drive a speaker and to demonstrate the audio signal frequency range 20Hz to 20KHz without BMC cable
